LEO21GT

Compact design
Low surface load
Intuitive control system
High-performance stabiliser system
Height and width adjustable crawler tracks
TEUPEN "Fuzzy"
Dual power source
REQUEST NOW
You are here:
TEUPEN > LEO21GT
TECHNICAL DATA
Technical data sheet
Model
LEO21GT
Working height, max.
21,00 m
Horizontal outreach, max.
12,00 m
Length with / without platform
6,40 m / 5,05 m
Width, min.
0,98 m
Height
1,99 m
Total weight
3.000 kg
Standard power source
230 V Electric motor + petrol engine

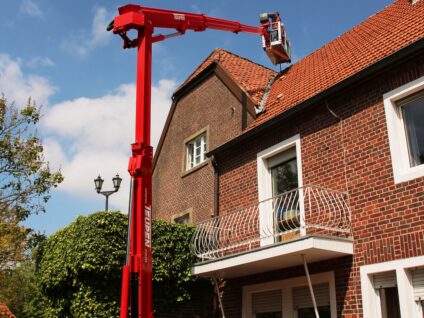

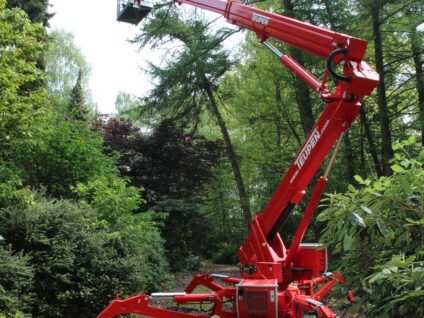

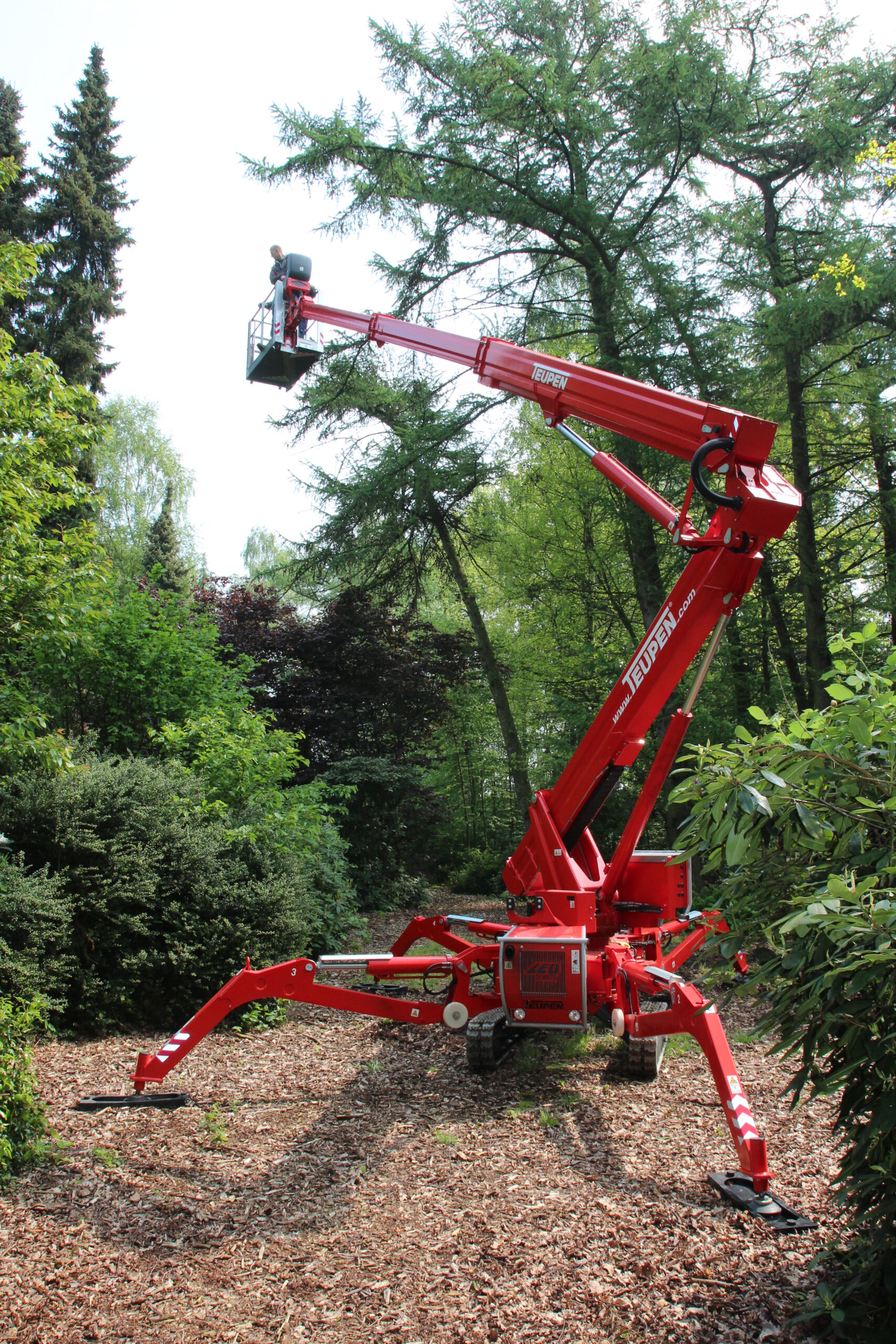

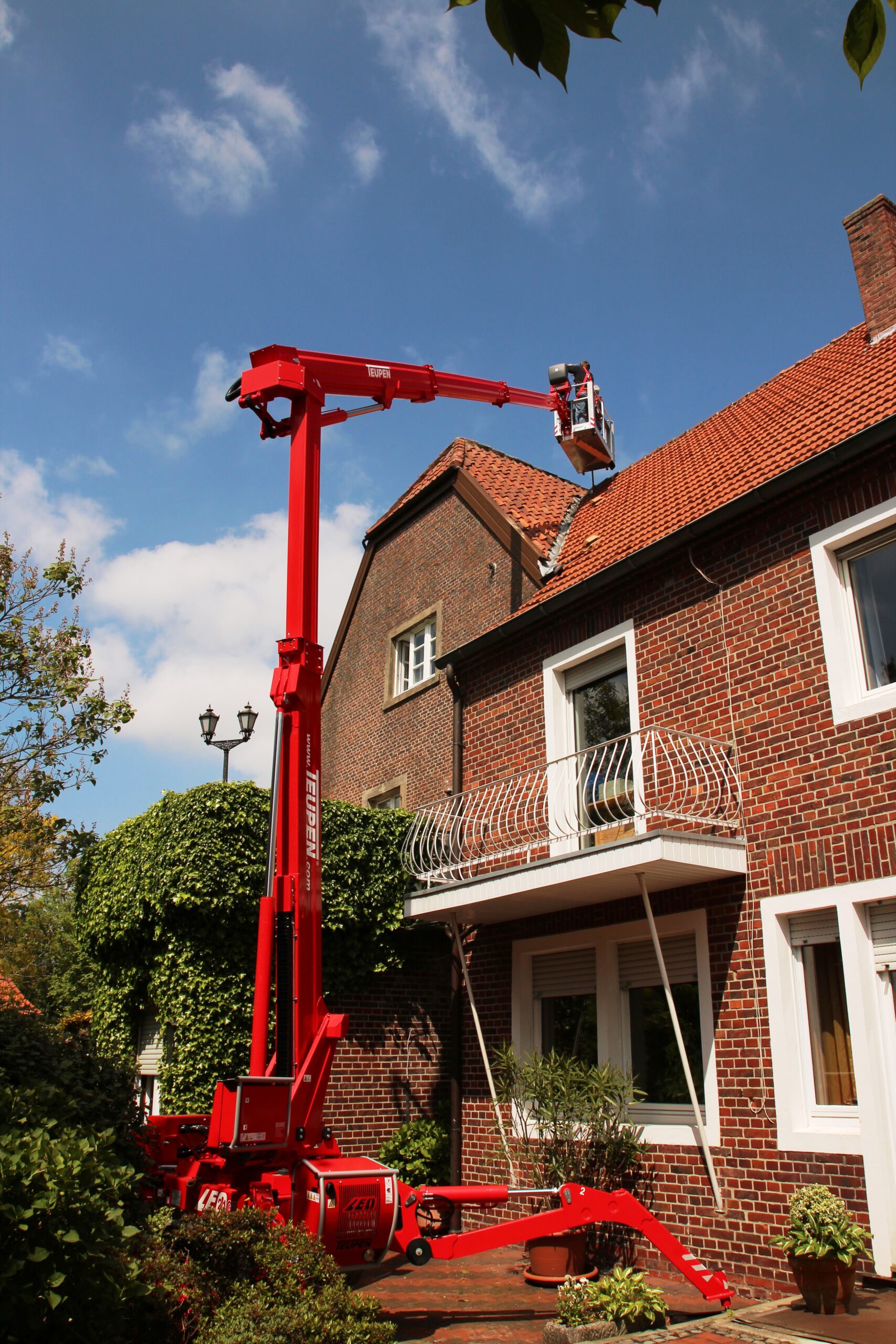

LEO21GT IN THE FIELD

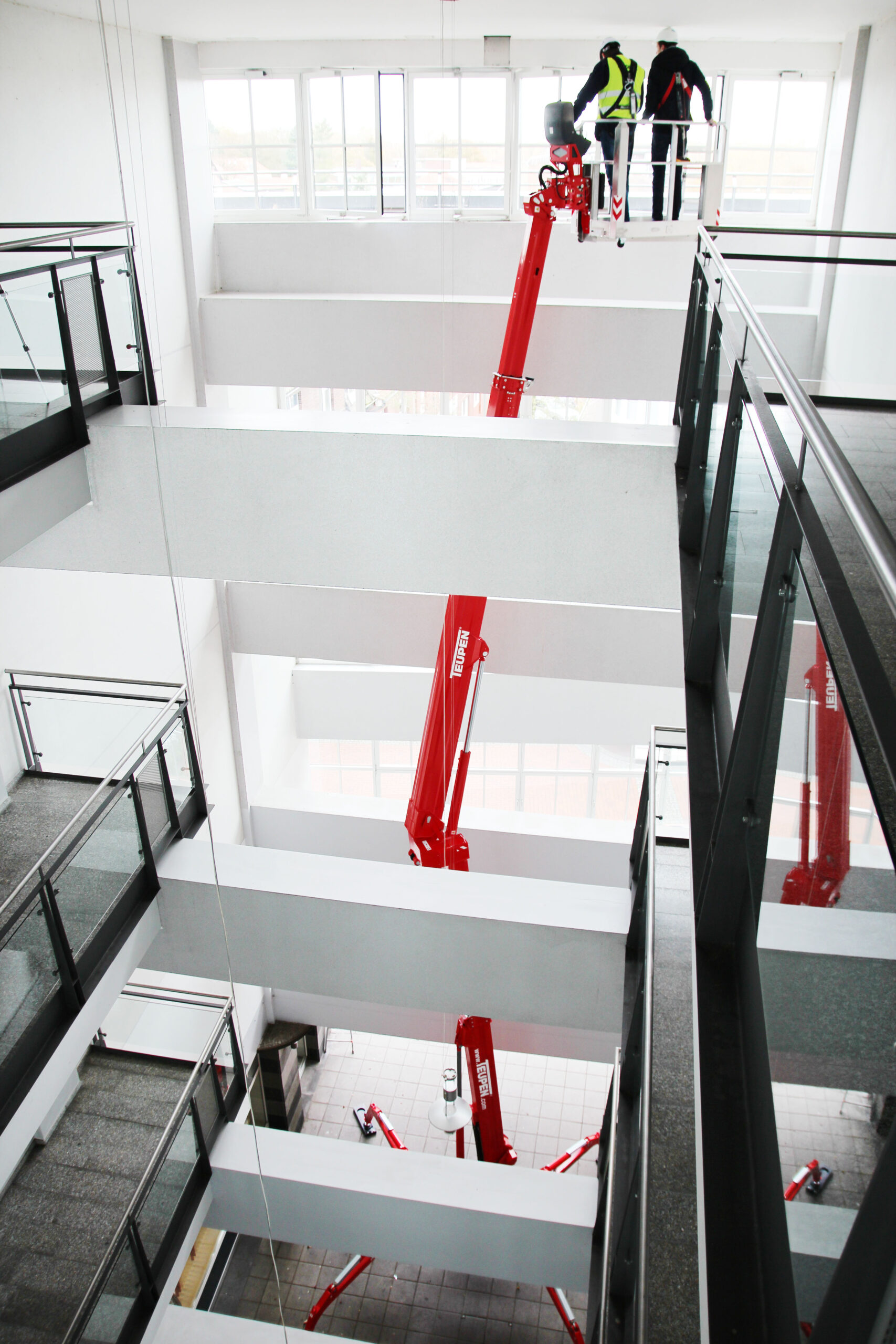

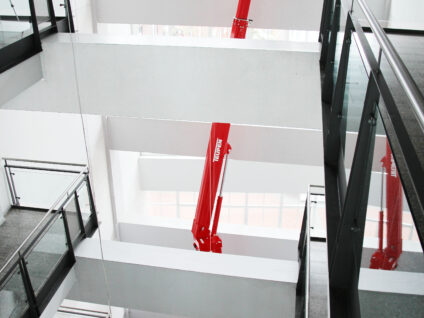

VIDEO - THE LEO21GT IN THE FACILITY MAINTENANCE
PRODUCT COMPARISON
Modell
LEO21GT
LEO23GT
LEO24GT
LEO23T
Working height. max.
21,00 m
23,00 m
24,00 m
23,20 m
Horizontal outreach, max.
12,00 m
11,20 m
12,00 m
15,60 m
Platform capacity
250 kg
200 kg
250 kg
250 kg
Length with / without platform
6,40 m / 5,05 m
6,20 m / -
6,40 m / 5,05 m
6,20 m / -
Width x Height
0,98 m x 1,99 m
0,98 m x 1,97 m
0,98 m x 1,99 m
0,99 m x 1,99 m
Total weight
3.000 kg
2.990 kg
3.300 kg
2.975 kg
Adjustable crawler tracks
✓
✓
✓
✓
230 V electric drive + petrol engine
✓
-
✓
-
230 V electric drive + Diesel engine
✓
✓
✓
✓
230 V electric drive + battery engine
✓
✓
✓
-
Coming Home Function
✓
-
✓
✓
Lifting device 300 kg
✓
-
✓
✓
Additional electric drive (emergency lowering)
✓
-
✓
✓
Diplay in the platform
✓
-
✓
✓
PRODUCT COMPARISON
Modell
LEO21GT
Working height. max.
21,00 m
Horizontal outreach, max.
12,00 m
Platform capacity
250 kg
Length with / without platform
6,40 m / 5,05 m
Width x Height
0,98 m x 1,99 m
Total weight
3.000 kg
Adjustable crawler tracks
✓
230 V electric drive + petrol engine
✓
230 V electric drive + Diesel engine
✓
230 V electric drive + battery engine
✓
Coming Home Function
✓
Lifting device 300 kg
✓
Additional electric drive (emergency lowering)
✓
Diplay in the platform
✓
Modell
LEO23GT
Working height. max.
23,00 m
Horizontal outreach, max.
11,20 m
Platform capacity
200 kg
Length with / without platform
6,20 m / -
Width x Height
0,98 m x 1,97 m
Total weight
2.990 kg
Adjustable crawler tracks
✓
230 V electric drive + petrol engine
-
230 V electric drive + Diesel engine
✓
230 V electric drive + battery engine
✓
Coming Home Function
-
Lifting device 300 kg
-
Additional electric drive (emergency lowering)
-
Diplay in the platform
-
Modell
LEO24GT
Working height. max.
24,00 m
Horizontal outreach, max.
12,00 m
Platform capacity
250 kg
Length with / without platform
6,40 m / 5,05 m
Width x Height
0,98 m x 1,99 m
Total weight
3.300 kg
Adjustable crawler tracks
✓
230 V electric drive + petrol engine
✓
230 V electric drive + Diesel engine
✓
230 V electric drive + battery engine
✓
Coming Home Function
✓
Lifting device 300 kg
✓
Additional electric drive (emergency lowering)
✓
Diplay in the platform
✓
Modell
LEO23T
Working height. max.
23,20 m
Horizontal outreach, max.
15,60 m
Platform capacity
250 kg
Length with / without platform
6,20 m / -
Width x Height
0,99 m x 1,99 m
Total weight
2.975 kg
Adjustable crawler tracks
✓
230 V electric drive + petrol engine
-
230 V electric drive + Diesel engine
✓
230 V electric drive + battery engine
-
Coming Home Function
✓
Lifting device 300 kg
✓
Additional electric drive (emergency lowering)
✓
Diplay in the platform
✓
